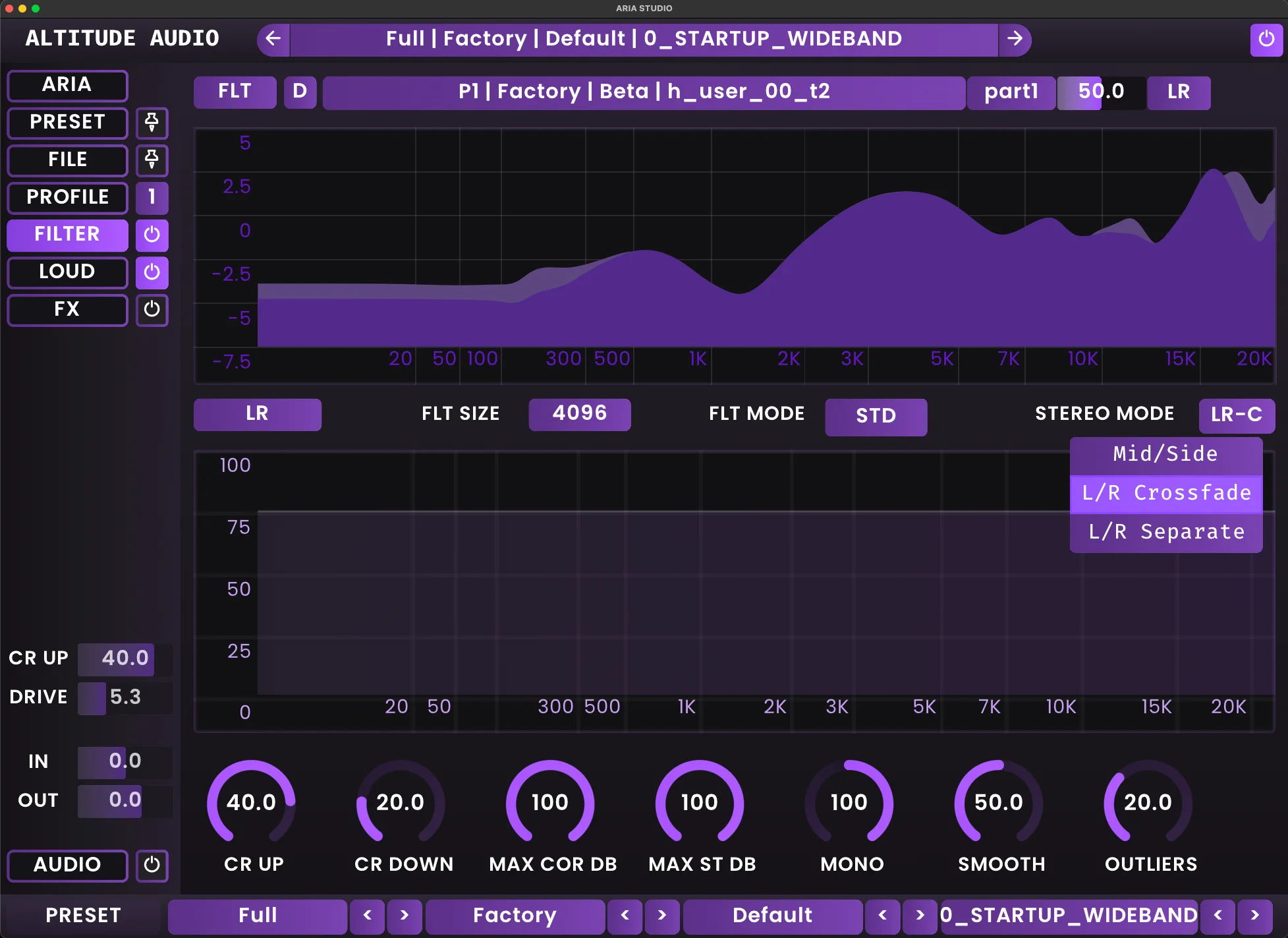

The 3 Operating Modes of ARIA Studio

Understanding ARIA Studio's Operating Modes

ARIA Studio features three distinct operating modes, each designed with specific use cases in mind while remaining versatile enough for various listening environments. Whether you're using headphones or speakers, these modes provide different approaches to sound personalization that can dramatically impact your listening experience.

While each mode was originally envisioned for particular scenarios, all three can be effectively used with both headphones and speakers. The key is understanding the unique characteristics and benefits of each approach to select the most appropriate mode for your specific listening situation and preferences.

Left-Right Separate (LR-S): Independent Channel Correction

Left-Right Separate mode applies completely independent correction profiles to each ear without any interaction between channels. This is the most straightforward and intuitive approach to hearing correction, treating each ear as a separate entity.

Originally designed primarily for headphone use where each ear receives an isolated signal, LR-S applies your exact hearing profile to each ear independently. This creates a highly personalized correction that precisely addresses the unique hearing characteristics of each ear.

Despite its headphone-first design philosophy, LR-S can work remarkably well with speakers in certain scenarios, sometimes creating an enhanced spatial image with impressive results. However, in speaker environments, it's important to be aware of potential crosstalk issues.

Left-Right Combined (LR-C): Balanced Channel Correction

Left-Right Combined mode creates a shared correction profile derived from both ears' individual hearing profiles. This mode was specifically designed to address crosstalk concerns in speaker environments while maintaining personalized correction.

LR-C works by creating an optimized profile that balances three key factors: maximizing shared correction between channels, preserving individual ear correction where needed, and minimizing over-correction that could result from crosstalk.

When using the Left-Right EQ Multiband Editor (MBE) in this mode, you're effectively adjusting the weights used in this optimization process. This determines which frequency regions favor the ear with more correction versus the ear with less correction, based on your MBE settings.

Mid/Sides (M/S): Psychoacoustic Space Correction

Mid/Sides mode operates in psychoacoustic space rather than simple left-right channel space. This sophisticated approach processes the 'Mid' content (shared between channels) and 'Sides' content (differences between channels) separately, allowing for more nuanced control over the spatial aspects of your audio.

While sharing the same goals as LR-C—minimizing crosstalk issues—Mid/Sides takes a fundamentally different approach. It's particularly effective at enhancing focus and clarity of center-panned content like vocals and speech, making them stand out in the mix without affecting the overall spatial image.

The Mid/Sides mode features separate Multiband Editors for the Mid and Sides components, giving you precise control over how much correction is applied to each psychoacoustic space. This allows for sophisticated sound shaping that goes beyond simple channel-based correction.

Advanced Mid/Sides Controls

The Mid/Sides mode offers unique controls that allow you to fine-tune the focus and width of your audio. When properly adjusted, these controls can dramatically enhance the clarity of vocals and central elements while maintaining a natural spatial image.

To increase focus and make speech or vocals stand out more prominently, you can either increase the Mid correction or decrease the Sides correction using their respective MBEs. Conversely, if the focus feels too intense or narrow, you can adjust in the opposite direction.

The MS Blend knob provides an additional layer of control, using a customized approach to increase perceived width without simply boosting the Sides content. This creates a more natural expansion of the soundstage that preserves the tonal integrity of your audio.

Choosing the Right Mode for Your Listening Environment

Here's a practical guide to selecting the most appropriate mode based on your listening scenario:

1. For Headphone Listening: Left-Right Separate (LR-S) is often the ideal starting point, as it provides the most direct and personalized correction for isolated ear channels. However, if you find the stereo image too extreme or unnatural, try Left-Right Combined with a moderate MONO setting.
2. For Speaker Listening: Left-Right Combined (LR-C) or Mid/Sides (M/S) modes generally provide better results due to their crosstalk management. LR-C offers a more straightforward approach, while M/S provides more sophisticated control over spatial elements.
3. For Vocal-Heavy Content: Mid/Sides mode excels at enhancing clarity and intelligibility of vocals and speech while maintaining a natural soundstage, making it ideal for podcasts, vocal-focused music, or dialogue-heavy content.
4. For Critical Listening: Experiment with all three modes using high-quality reference tracks. Pay attention to tonal balance, spatial imaging, and overall naturalness to determine which mode best suits your specific hearing profile and preferences.
5. For Future Multichannel Setups: The Mid/Sides approach will become increasingly valuable in true multichannel environments, as it was designed with spatial audio processing in mind.

Summary

ARIA Studio's three operating modes—Left-Right Separate, Left-Right Combined, and Mid/Sides—offer flexible approaches to sound personalization for different listening environments. LR-S provides independent correction for each ear, ideal for headphones but also usable with speakers. LR-C creates a balanced profile that minimizes crosstalk issues in speaker environments. M/S operates in psychoacoustic space to enhance focus and clarity while maintaining spatial integrity. By understanding the unique characteristics and applications of each mode, you can optimize your hearing correction for any listening scenario.
